Sigma Series 4 NEX 4CN Pushing Incision Tile Cutter 29,9 inc 76 cm

TILE CUTTER MACHINE PUSH HANDLE SIGMA 4CN CUTTING LENGHT 76 CM SERIES 4 NEX

Pushing incision, easy and deep with minimum effort, perfect for rough, thick and large tiles.

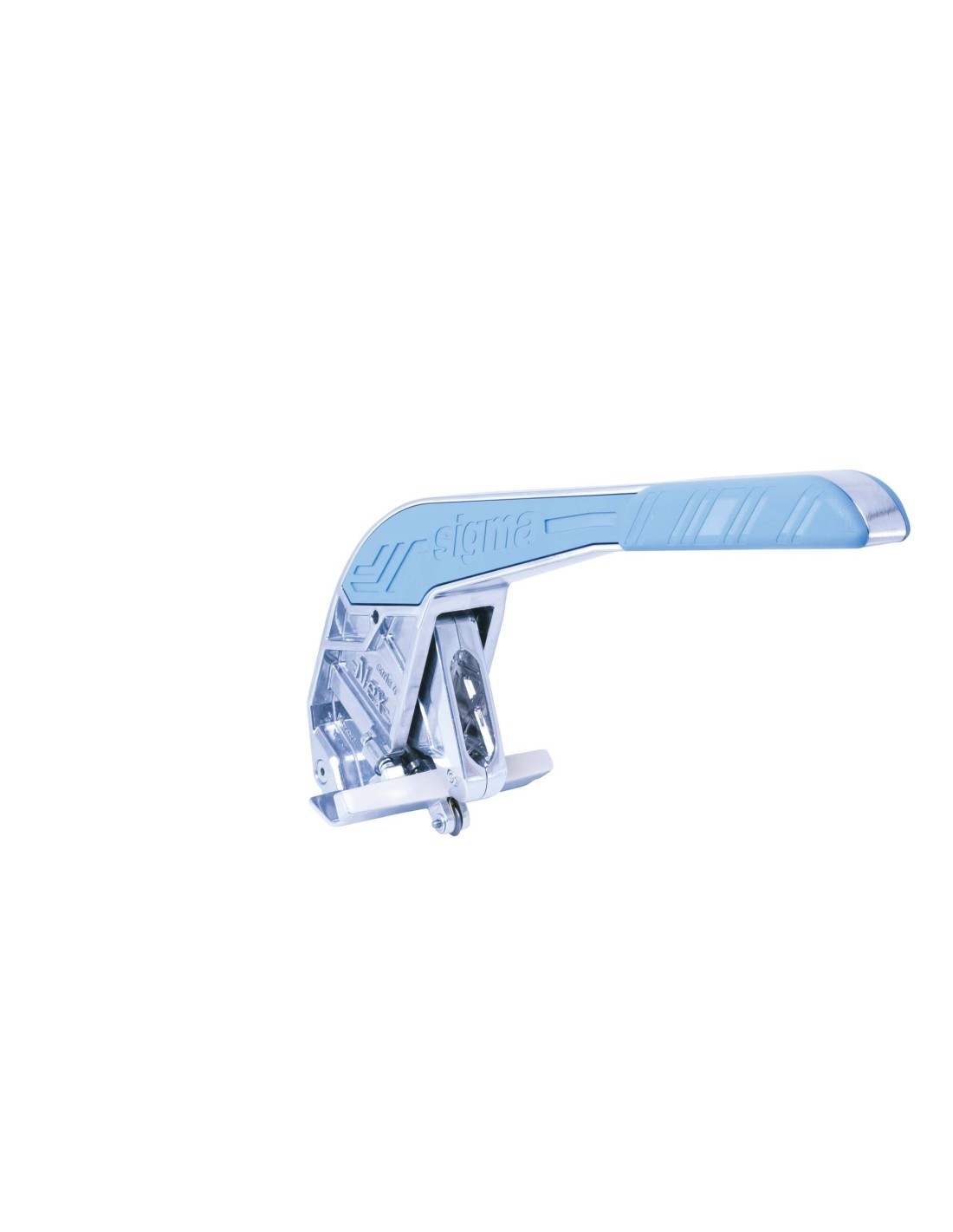

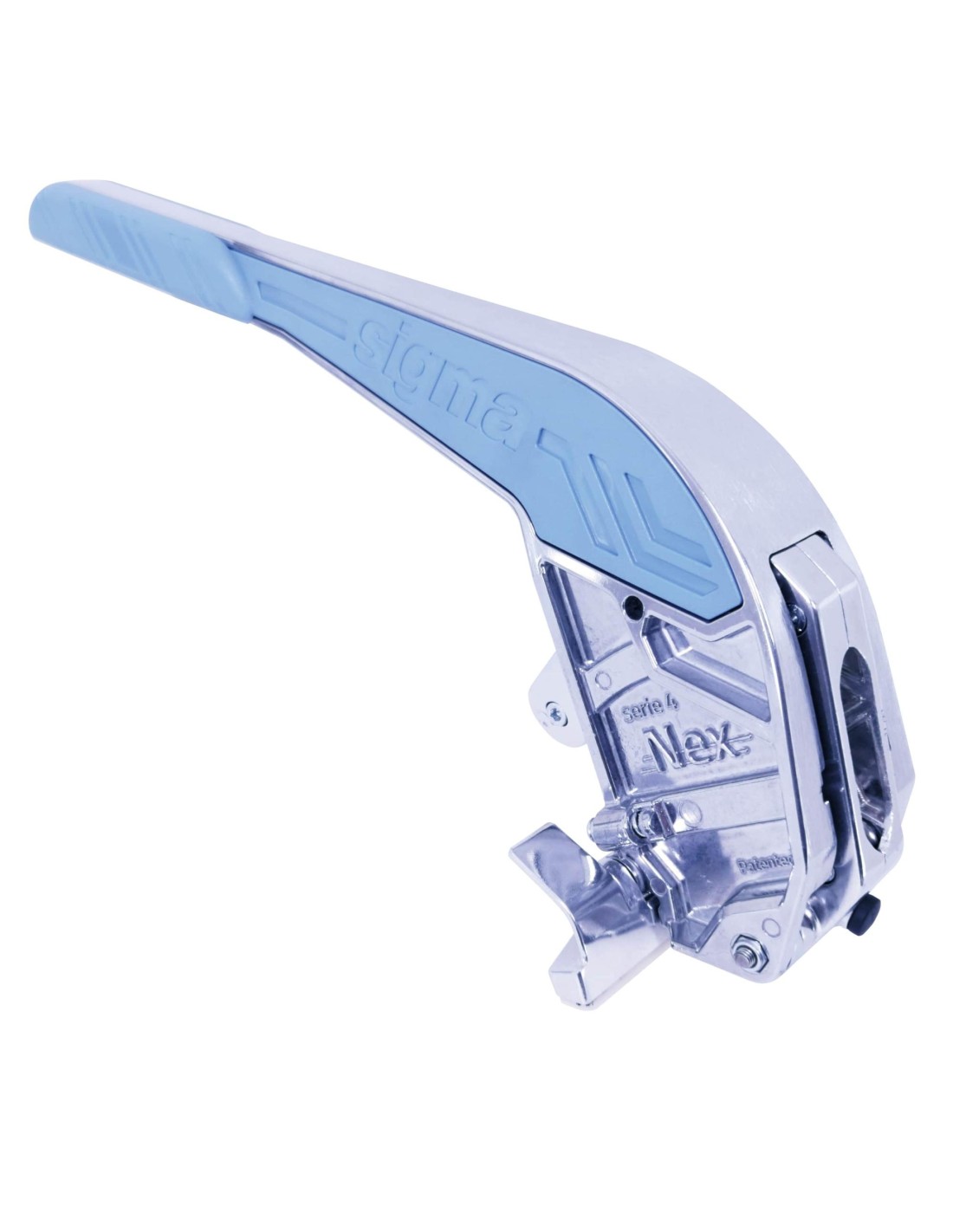

Ergonomic handle specific for pushing incision.

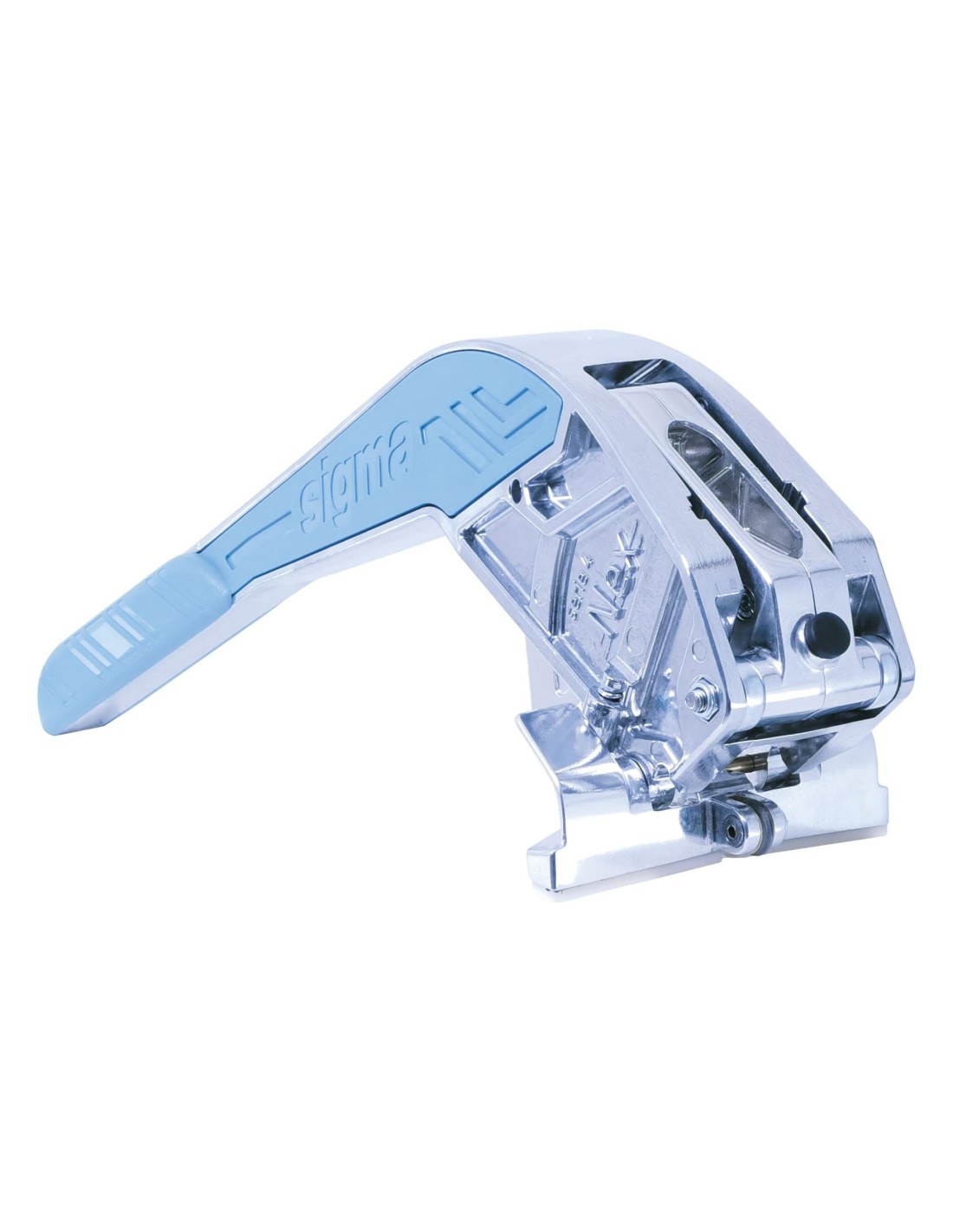

The 16 mm diameter scoring wheel is always clearly visible on the operator side and equipped with double suspension for the cushioned scoring of structured tiles.
The scoring wheel rotates on a roller bearing, guided laterally by an anti-friction metal shell inserted in a CNC milled holder,to avoid friction and lateral clearance.
Wheels diameter 16 mm with internal bearing for maximum smoothness in the scoring phase, also available in TIN coated version.
120 mm wide splitting foot with interchangeable anti-mark protection.
The sliding carriage is clearance-free, thanks to 3 double-row ball bearings that guarantee precision over time without the need for maintenance.
There is an automatic system that keeps the handle raised facilitate the insertion of the tile.
Automatic steel compensator for adjusting the slide preload on the rail.

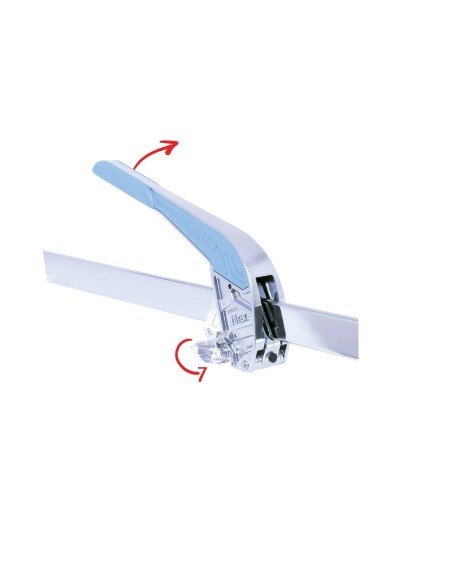

For splitting phase, simply lift the handle to allow automatic rotation of the foot.
The front protective rubber pad absorbs the impact during the incision in order not to damage the base.

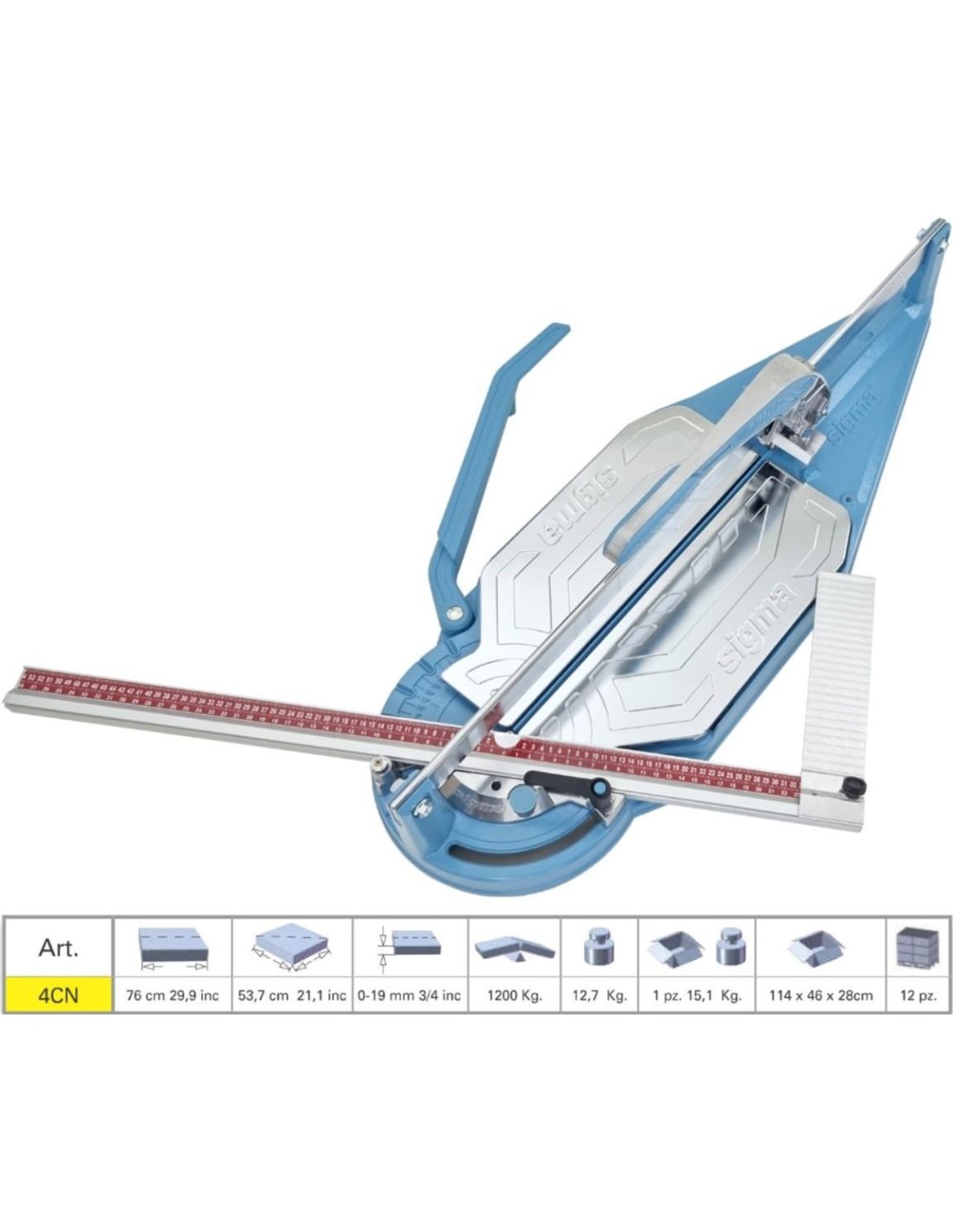

Technical data:

Maximum cutting length: 76  cm
Diagonal cutting length: 53,3 cm
Maximum cutting thickness: 19 mm
Breaker Strength Powerful: 1200 kg
Weight: 12,7 kg.
